State-of-the-art, software-controlled disinfection technology that sterilises the air and surfaces in private rooms of self-service areas before granting access to another person, controlled via the SafeT access control unit

SafeStore Auto: Disinfection Module

High degree of disinfection

The disinfection system neutralizes viruses, bacteria and micro-organisms by producing synthetic negative and positive ions on solid, liquid and gas surfaces, to a sterilisation degree of 99.9%

Software-controlled system

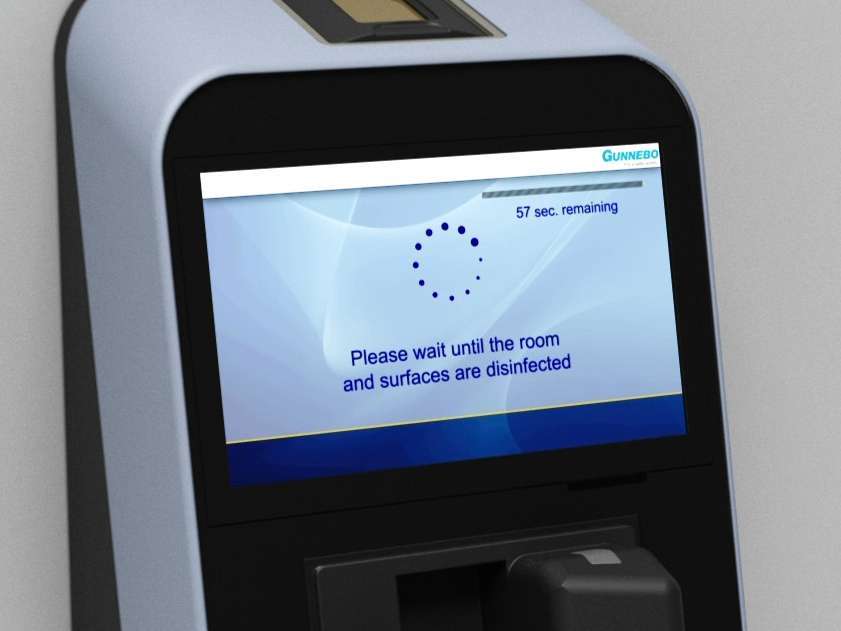

By integrating the control of the disinfection system into the software of the SafeT ACU, the access-controlled lobby door is only opened again when the specified disinfection times have been adhered to

Choice of 2 models

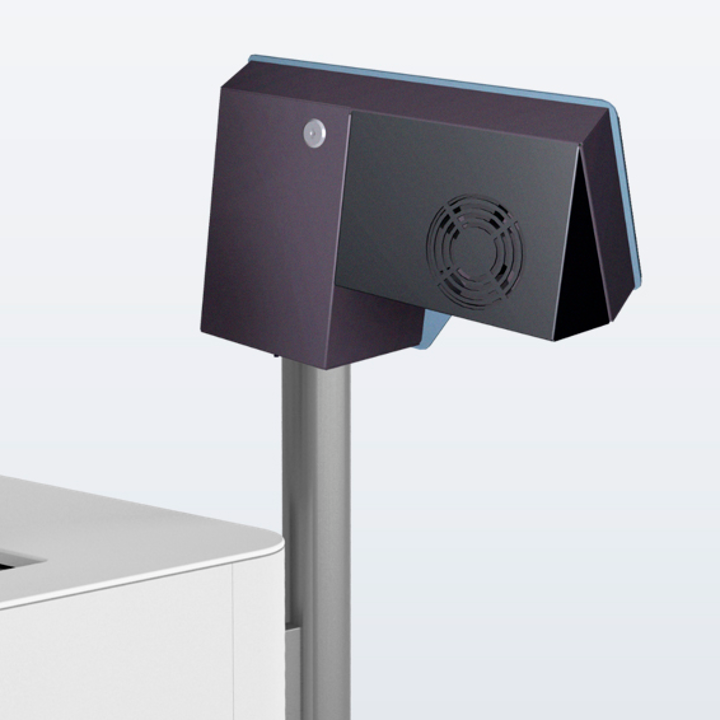

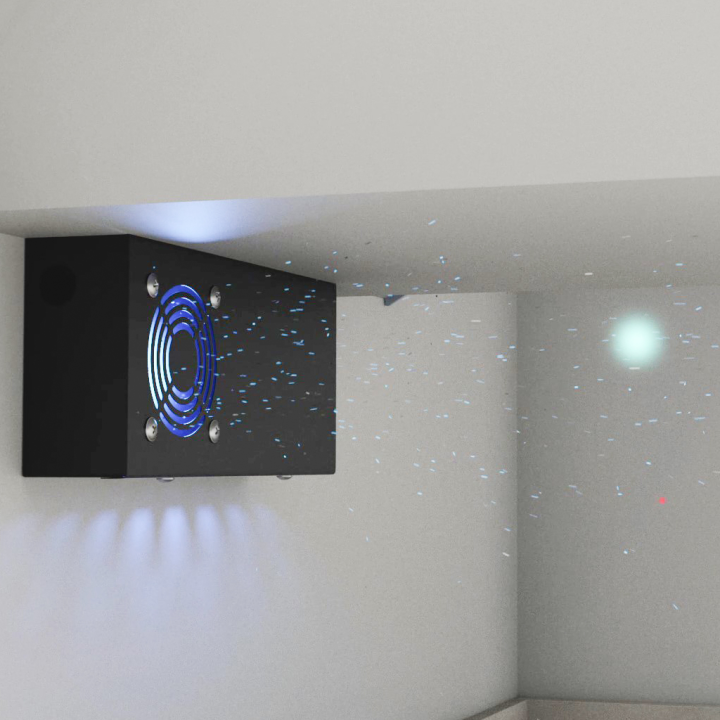

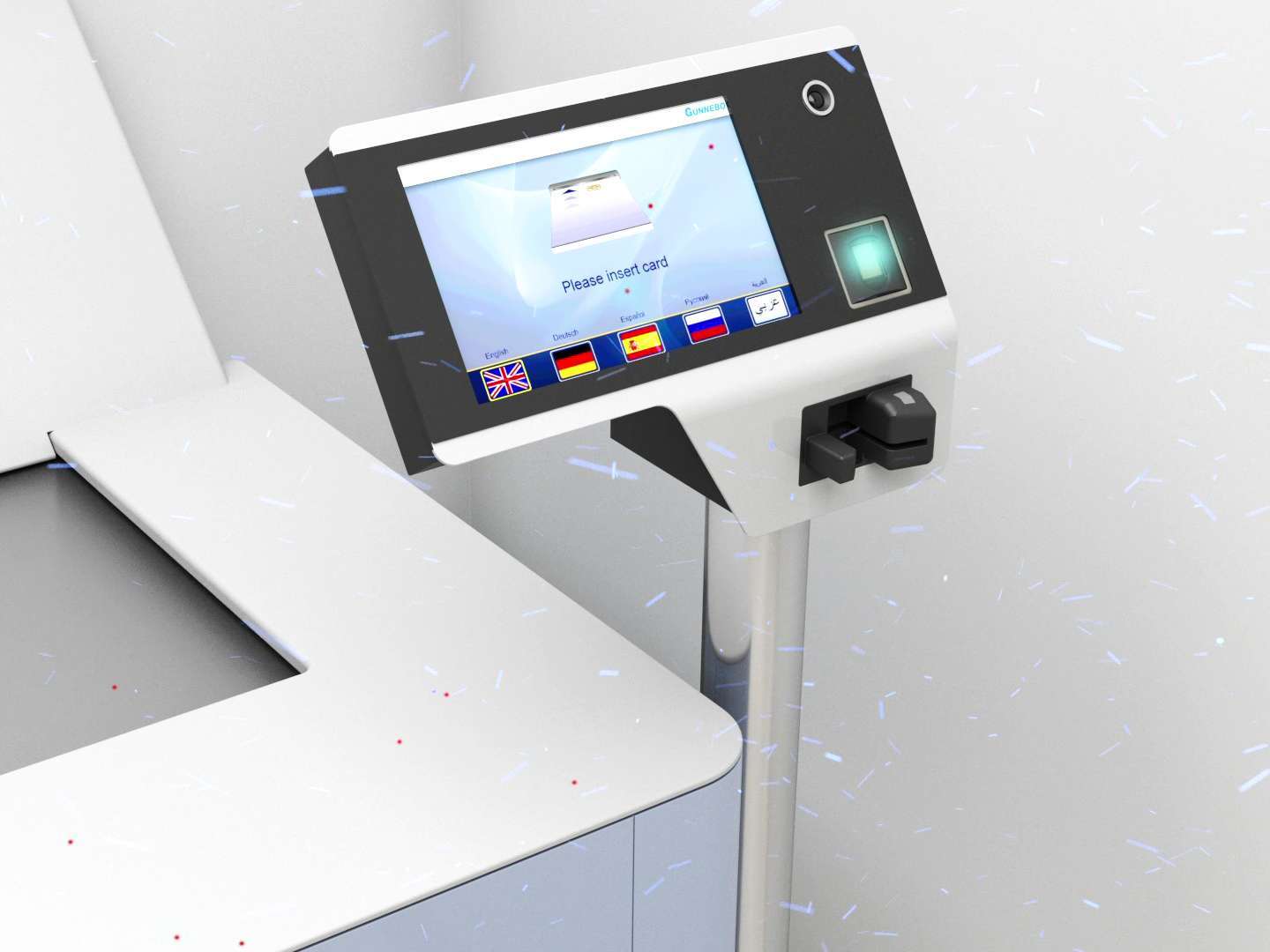

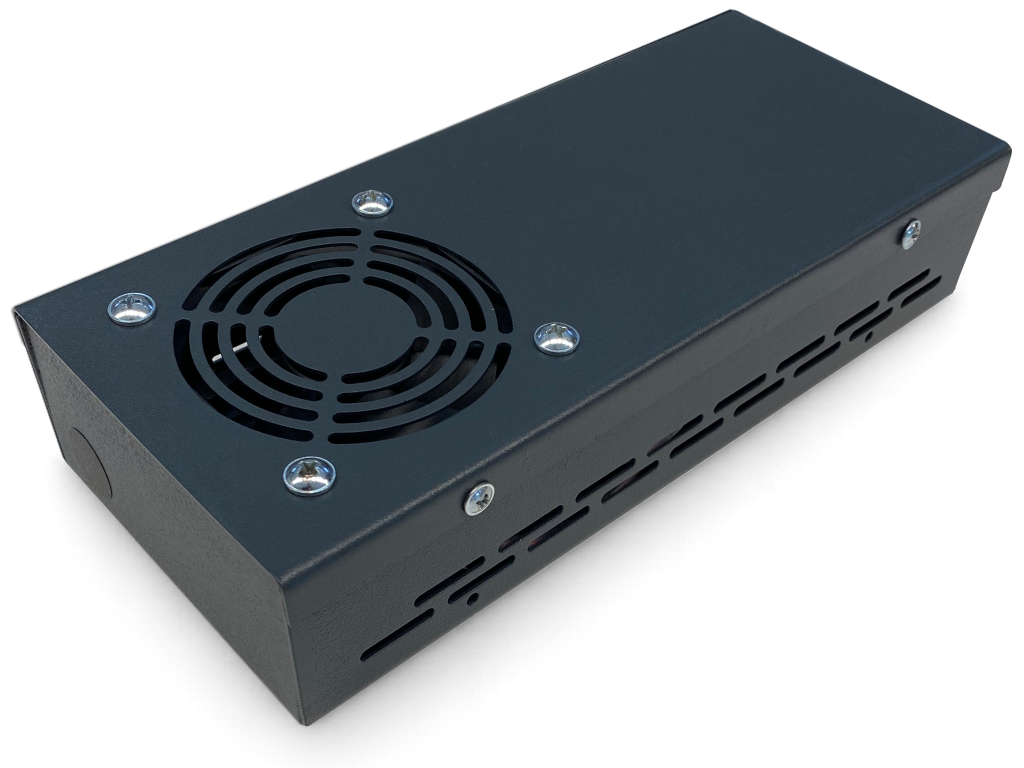

Two variants are available as solutions, either as an external disinfection module that is mounted directly under the output unit, or as a fully integrated solution where the module is attached directly to the back of the display

The technology uses special tubes that take oxygen molecules from the air and convert them into charged atoms. These then cluster around microparticles, surrounding and deactivating harmful substances like airborne mould, bacteria, allergens and viruses. They also attach to expelled breath droplets and dust particles that can transport viruses, enlarging them so they’re more easily caught in filters. It’s a highly effective, constantly active process that provides continuous disinfection.

  • Seamless integration into a SafeStore Auto solution to ensure a hygienic environment in the lobby area
  • Software-controlled system, connected to SafeT access control card reader unit
  • Strategic competitor differentiation through the provision of an even more secure customer experience
  • Anticipation of future safety regulations
  • Implementation of a tested and proven technology
  • Simple and uncomplicated installation, or retrofitting and upgrading of existing SafeStore Auto installations


Key Specifications

  • Disinfection Time: approx. 1 minute for 1 to 3 meters around the disinfection module
  • Installation Position: External module – Underneath the dispensing unit; Fully integrated module – On the rear side of the display of the dispensing unit
  • Dimensions (mm): External module – 115 x 260 x 55 (H x W x D); Fully integrated module – 130,17 x 180,5 x 89,5 (H x W x D)
  • Power Requirements: Power supply 12V DC / 1.5A DC; Consumption 15 W
  • Operating Conditions: 10-40 °C and 10-75% rel. humidity
