Secure-IT Level 3

Protect critical IT equipment against intrusion

Plug-and-play security cabinets to ensure that IT servers, including data and hardware are not accessible to unauthorised people

image image image image

Peace of mind against the disruption of potential threats

  • Ensure continuity

    Prevent service interruptions, with physical access protection

  • Maintain efficiency

    Avoid compromised efficiency, by securing IT equipment

  • Strengthen security

    Fully certified protection for data and IT equipment

Security features

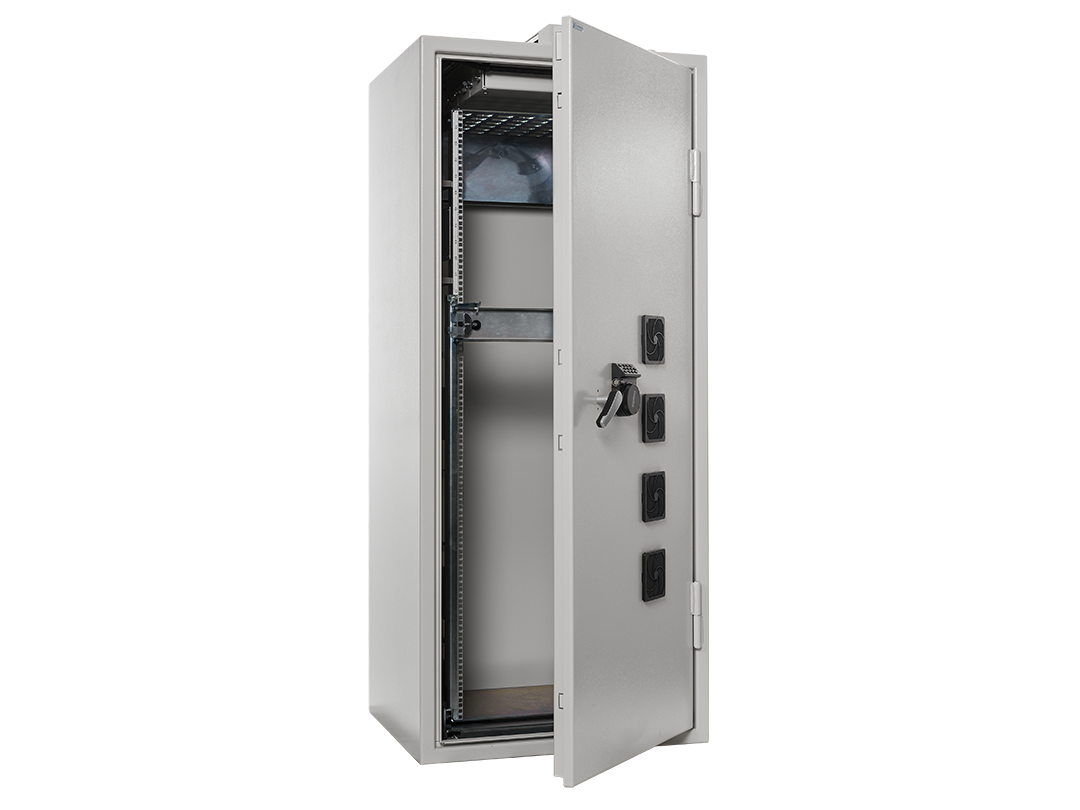

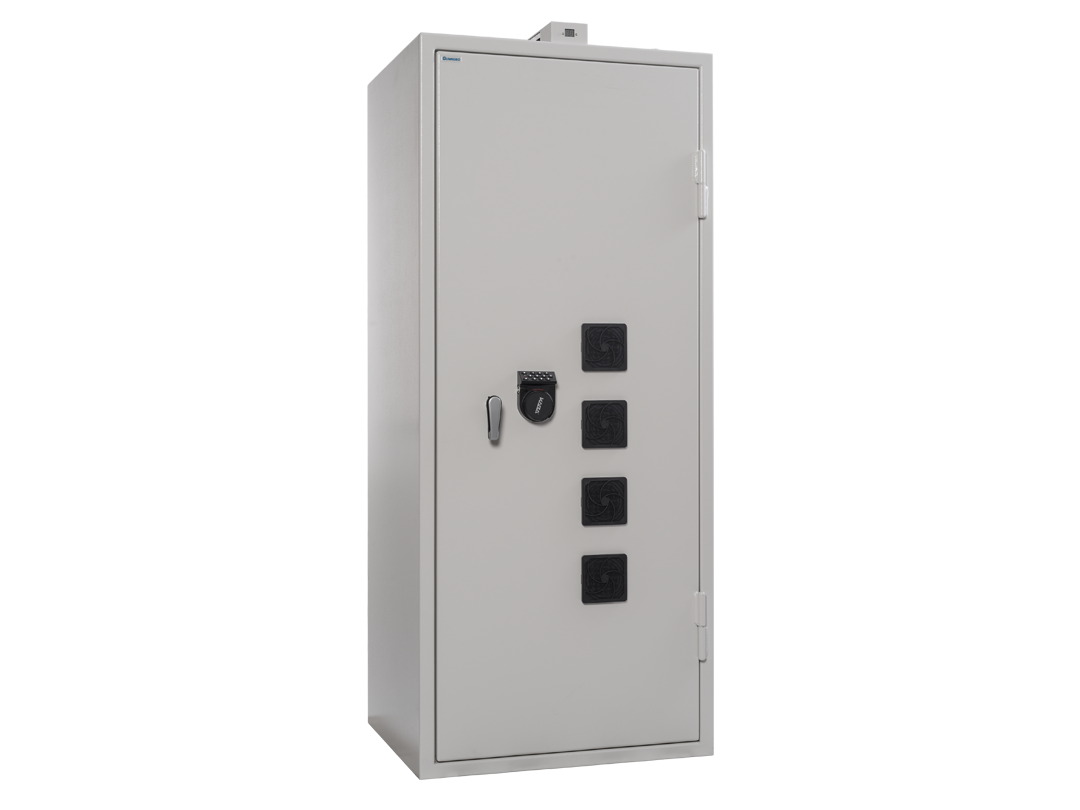

Engineered from solid 4mm special steel, with a 4-way bolt and locks developed for the safes industry, Level 3 cabinets are built to withstand determined attacks.

Tested by the SSF (Swedish Security Association) and certified by SBSC (Swedish Fire and Security Certification).

Locking features
  • Supplied with a resettable key lock certified to EN 1300 Class A European Standard. A range of alternative electronic locks are available, all meeting the requirements of European Standard EN 1300.
  • Simple code lock, accepts up to 2 individual user codes
  • Locks for 99+ users
  • Event audit reporting
  • Time lock and time delay
  • IP connectivity for remote lock monitoring
Easy installation features Secure-IT cabinets are plug-and-play, with no assembly required. Simply install your server units, then connect power and communication cables. Standard cable entry is via the top, with base entry an option for data centres with raised flooring. Secure-IT cabinets are easily base-anchored from within, to resist unauthorised removal.
Customisable features
  • Choice of two heights and two depths, for 19 or 38 server units
  • Two specification options available: PASSIVE and ACTIVE. Please see Product Specifications for details
  • Additional ventilation or connection to an external cooling system
  • Additional power or fibre optic connection points
  • Left-hand door or rear service doors

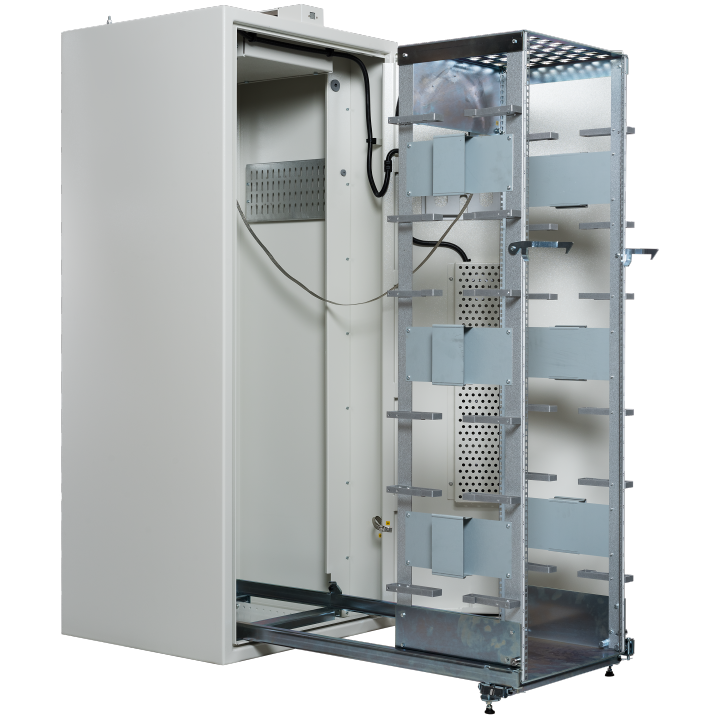

  • Pull-out server rack is an option, if easier access is needed
PASSIVE specification features
  • Passive cooling: air passes over server, extracted through roof
  • Three-way moving bolt with fixed hinge bolts
  • Controlling EN 1300 Certified Key Lock
  • Cable entry with dust filter and cable protection
  • Mounting plate for internal detector

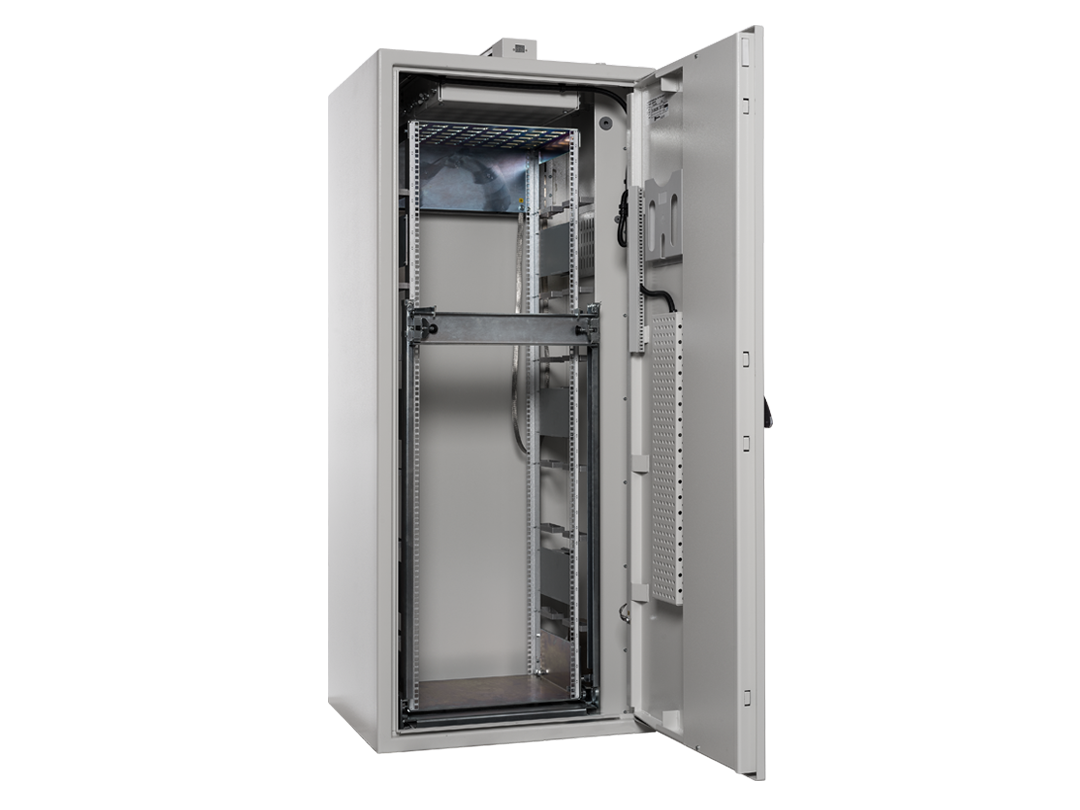

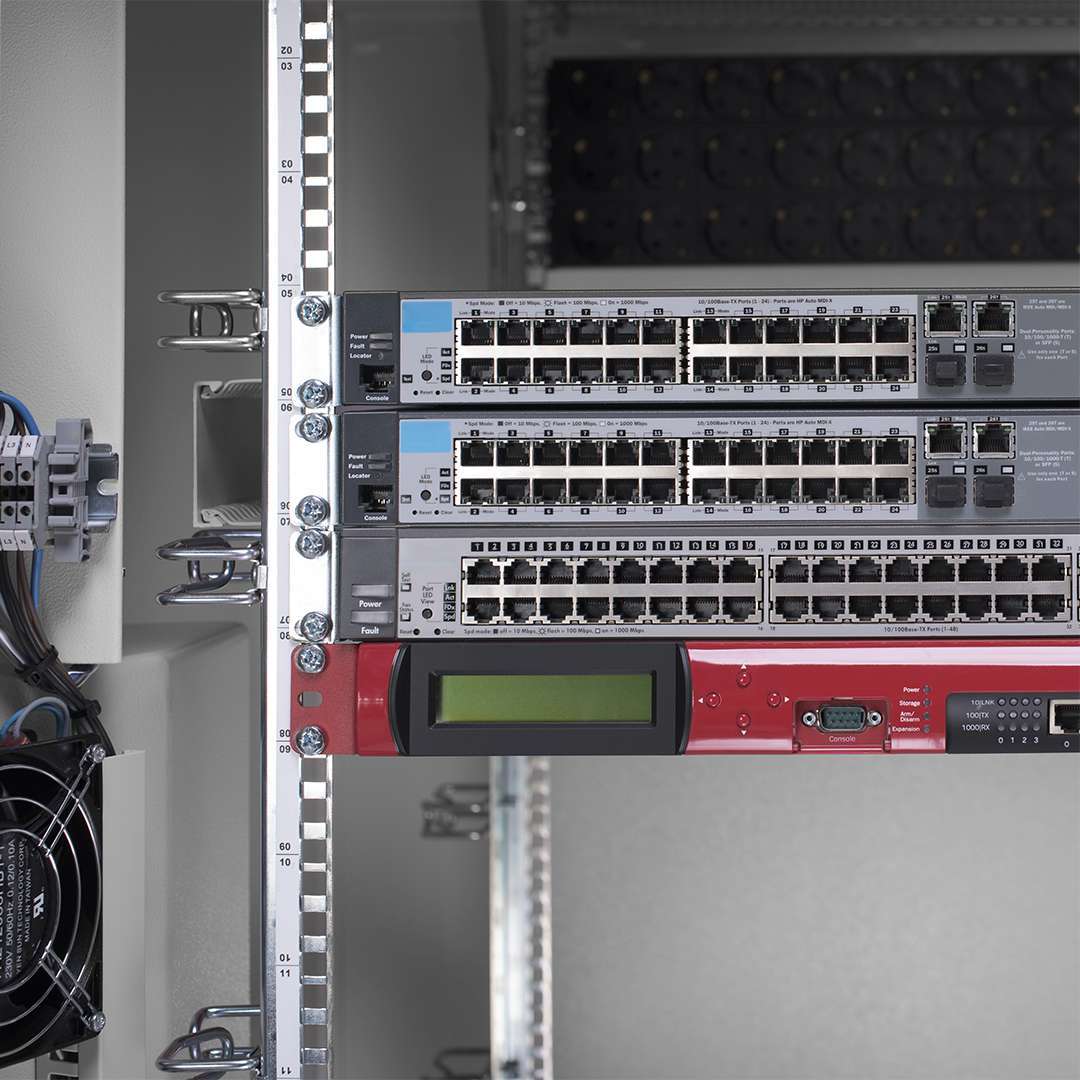

  • 19" server racking
  • Magnetic contact between door and frame for alarm connection
ACTIVE specification features
  • In addition to Passive features:
  • Active cooling: ventilation system monitors temperature, designed for 1kW power input

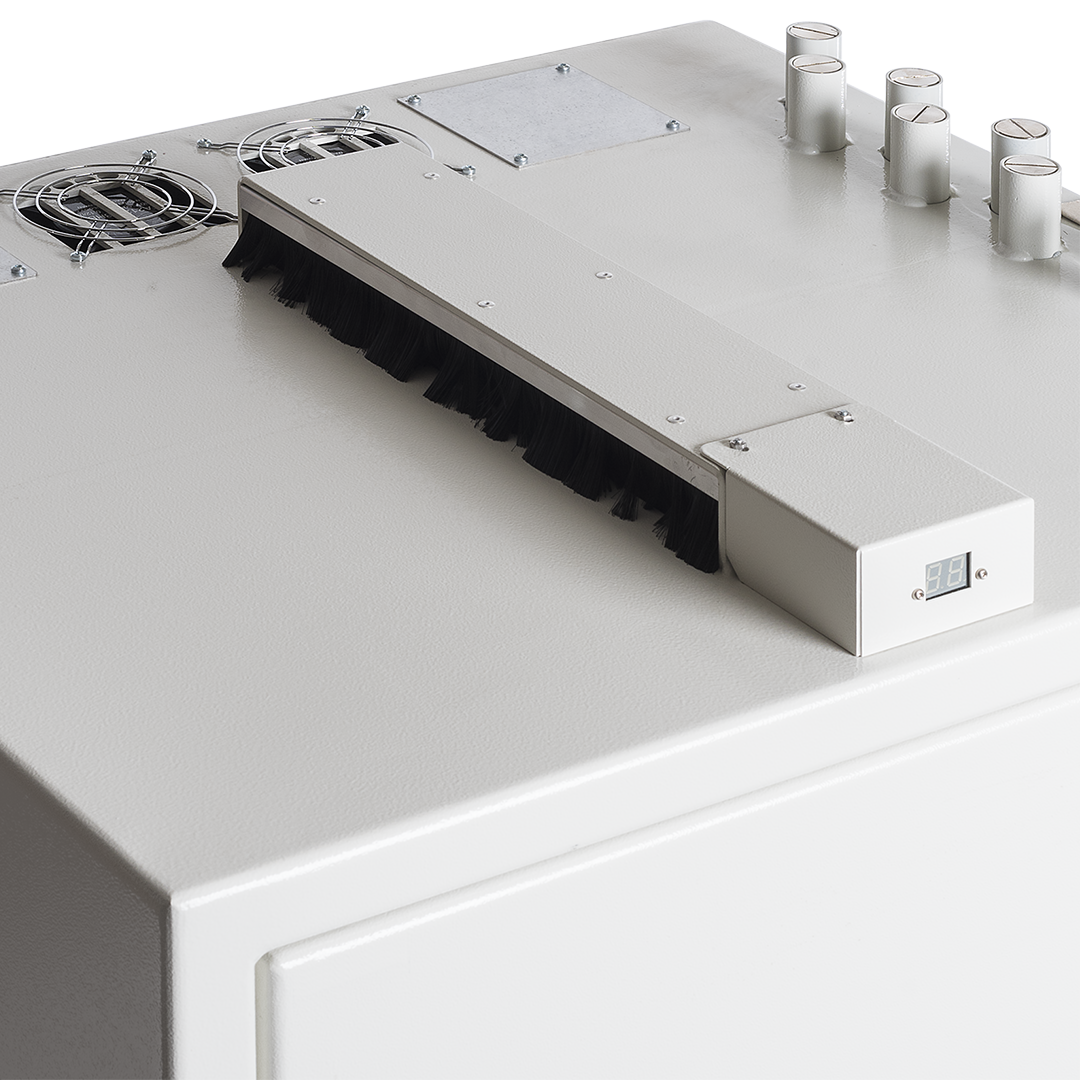

  • Fan package to ventilate via top of cabinet
  • Thermostatic control of fan speed
  • Potential equalisation to all contactable and conductive parts
  • Temperature display with temperature sensor alarm
  • Double earthed outlets
